OneUp OneUp Composite Pedal

OneUp OneUp Composite Pedal
  • Color: Black
  • Color: Purple
  • Color: Red
  • Color: Blue
  • Color: Green
  • Color: Orange
Color:
Please select options Unavailable

Details

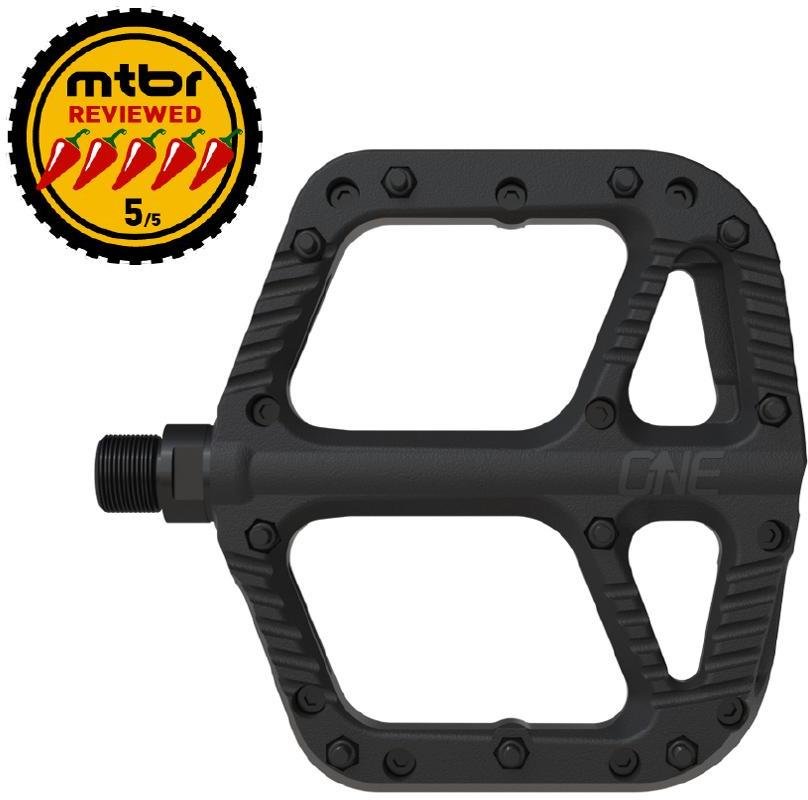

The OneUp Composite Pedals features a huge (115x105mm) super grippy platform with 10 rear-loading steel pins per side to keep your feet planted on even the roughest of trails. With a weight of only 355g, they won't slow you down on the climbs. Designed from stealth rubber down and shaped with a subtle convex profile to provide you with more grip thanks to the pedal sitting in the natural arch of your foot. The thin leading edge chamfered design gives you maximum clearance to reduce pedal strikes and deflect off trail obstacle.

FEATURES

10 rear loading Steel pins / side, with Nyloc nuts
DU plus cartridge bearing axle system
Thin leading edge chamfered design to deflect off obstacles
Wide platform design for increased stability
Contoured shape provides ultimate connected feel


SPECS

Weight: 355g
Platform Size: 115x105mm
# of Pins: 10 per side
Axle Material: Black chromoly steel
Height: 18.5mm (13.3 at the leading edge)
Pin to Axle distance: 108mm
Color: Stealth Black, Red, Blue, Orange
Body Material: Nylon Composite

INSTRUCTIONS
Install with 6mm Hex or 15mm pedal wrench. Torque to 35Nm (25 ft-lbs) Min

Part Numbers

Option MPN Store SKU
Black 1C0399BLK 210000009632
Purple 1C0399PUR 210000010943
Red 1C0399RED 210000010911
Blue 1C0399BLU 210000010941
Green 1C0399GRN 210000010797
Orange 1C0399ORA 210000010025
